プロの製造として、私たちはあなたに木製のダイを提供し、しわの自動カッティングマシンを作りたいと思います。そして、私たちはあなたに最高のアフターセールサービスとタイムリーな配達を提供します。あなたは私たちの工場に来て、最新の販売、低価格、高品質の木製のダイを購入して、しわの自動車切断機を購入することを歓迎します。私たちはあなたと協力することを楽しみにしています。
You can rest assured to buy customized Wooden Die Making Creasing Auto Cutting Machine from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

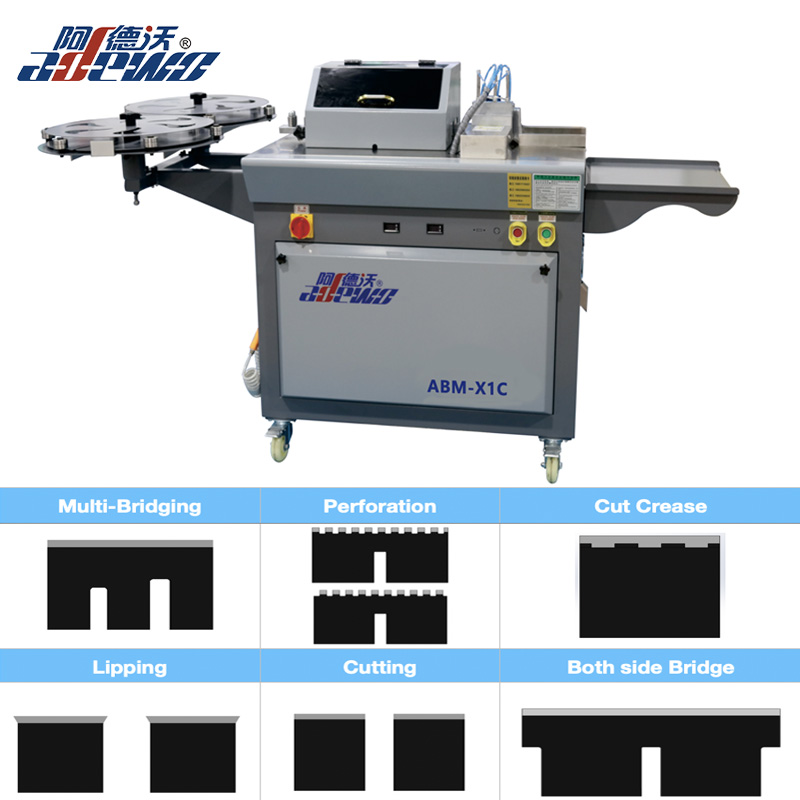

Picture of (ABM-X1C)Wooden Die Making Creasing Auto Cutting Machine for reference:
1.(ABM-X1C)Wooden Die Making Creasing Auto Cutting Machine included functions:Bridge,Lipping,Cutting,Both side Bridge.
Optional functions:Perforation,Cut Crease
2.This Wooden Die Making Creasing Auto Cutting Machine supported 2pt,3pt,4pt cutting rule and creasing rule,easy to change different steel rules.
3.The length of creasing rule/cutting rule can be identify quickly by the smart software, finish auto bridge and auto cutting in few minutes.
4.The different size of Bridge,Perforation,Cut Crease can be customized to meet different requirements of die boards.

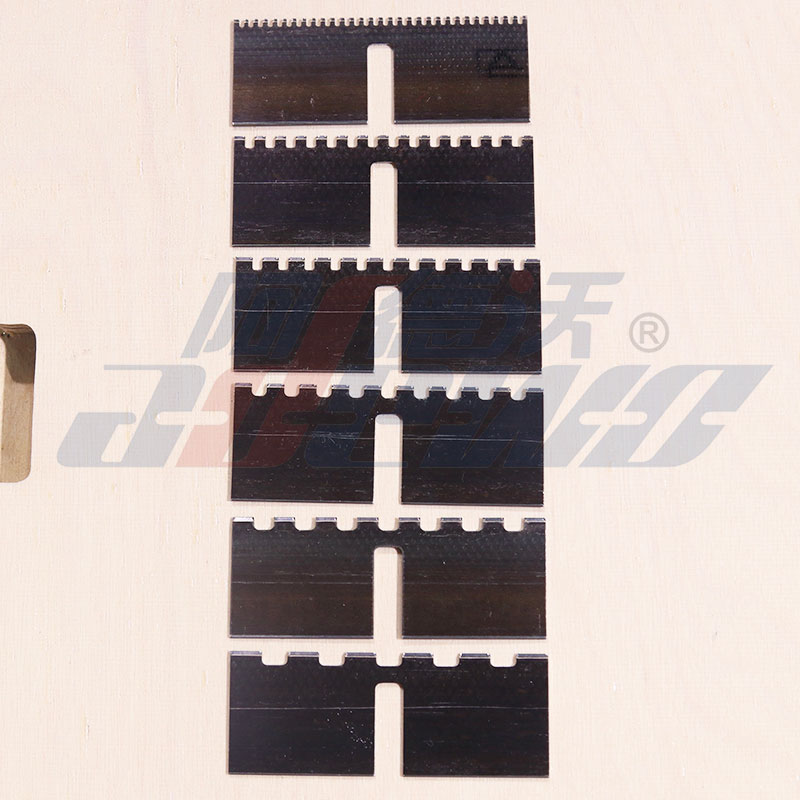

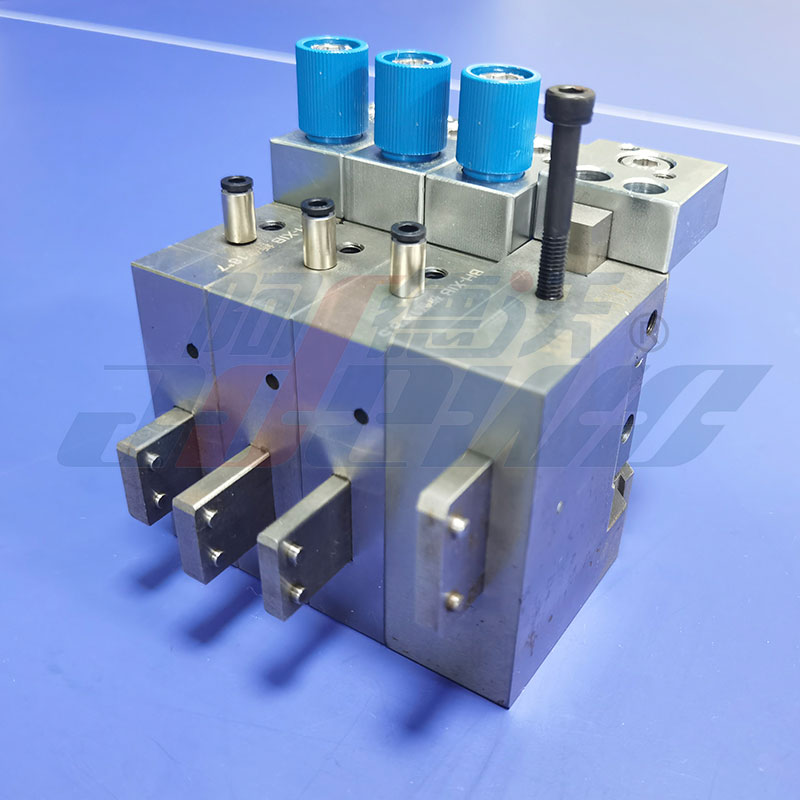

5.Lipping Tool,Perforation tool,Cut Crease tool are customize based on the cutting rule bevel degree, to get high precision size.

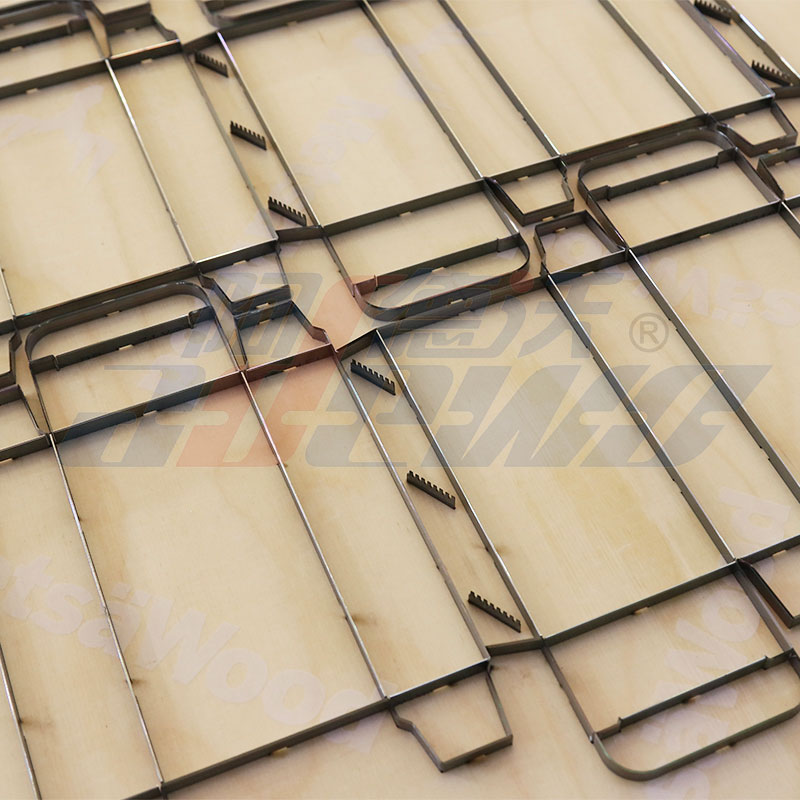

6.This Wooden Die Making Creasing Auto Cutting Machine is widely used in die making of carton box, paper box, cardboard, paper bag,corrugated and etc.
|
Supported rule thickness(mm) |
0.71,1.05,1.42mm (2pt,3pt,4pt) |
|
Supported rule height(mm) |
22-26mm |
|
Basic Functions |
Bridge,Lipping,Cutting,Both side Bridge |
|
Optional Functions |
Perforation,Cut Crease |
|
Optimal Graphic Format |
DXF,DWG |
|
Air supply |
0.4-0.8mpa |
|
Power supply |
220V,2KW |
|
Weight |
260KGS |
|
Overall dimension |
1220×760×1200mm(L×W×H) |
|
H.S. Code |
8461500090 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time of Wooden Die Making Creasing Auto Cutting Machine?
7-10 working days.
4.How about installation and training of Wooden Die Making Creasing Auto Cutting Machine?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
5.Any spare tools are included of Wooden Die Making Creasing Auto Cutting Machine?
Yes,the new order machine with free spare tools.
