（ABM-A2580）ロータリーダイは、自動ベンダーマシンをサポートした多径220-800mm曲線ルールとストレートスチールルールをサポートします。 China Adewoは、多くの国内および外国企業が高度な自動車ベンダーマシン、技術サポート、優れた販売サービスを提供することで成功しています。
Shenzhen Adewo Automation: Leading Manufacturer of Rotary Die Formes Auto Bender MachinesPursuit of perfect quality；Extreme design & high performanceCompetitive pricing；Excellent after-sales serviceConsult us now for top-notch Rotary Dies Making Curved Rule Auto Bender Machine services! We'll reply promptly.

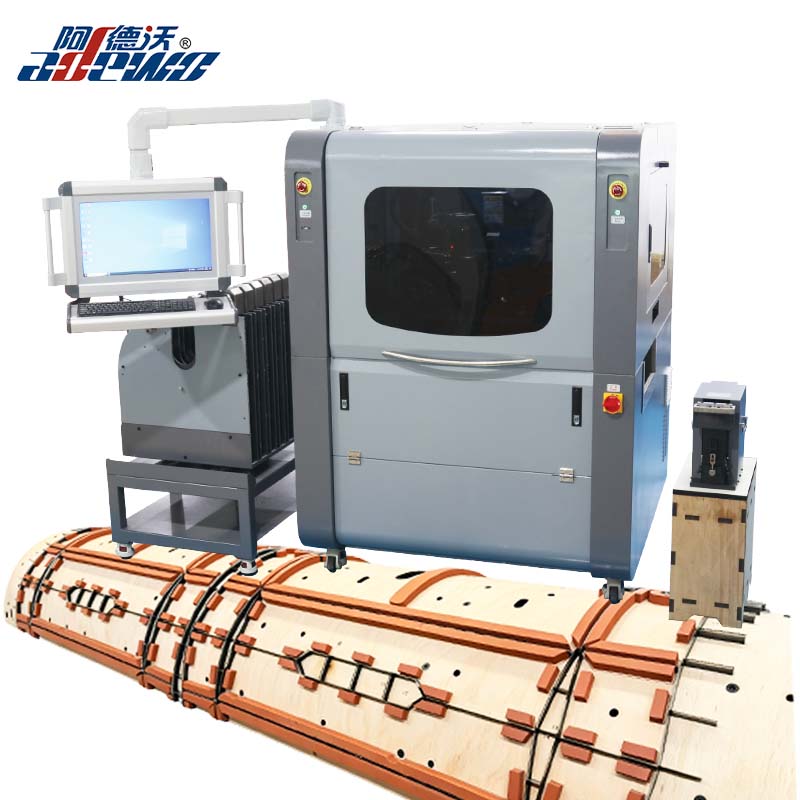

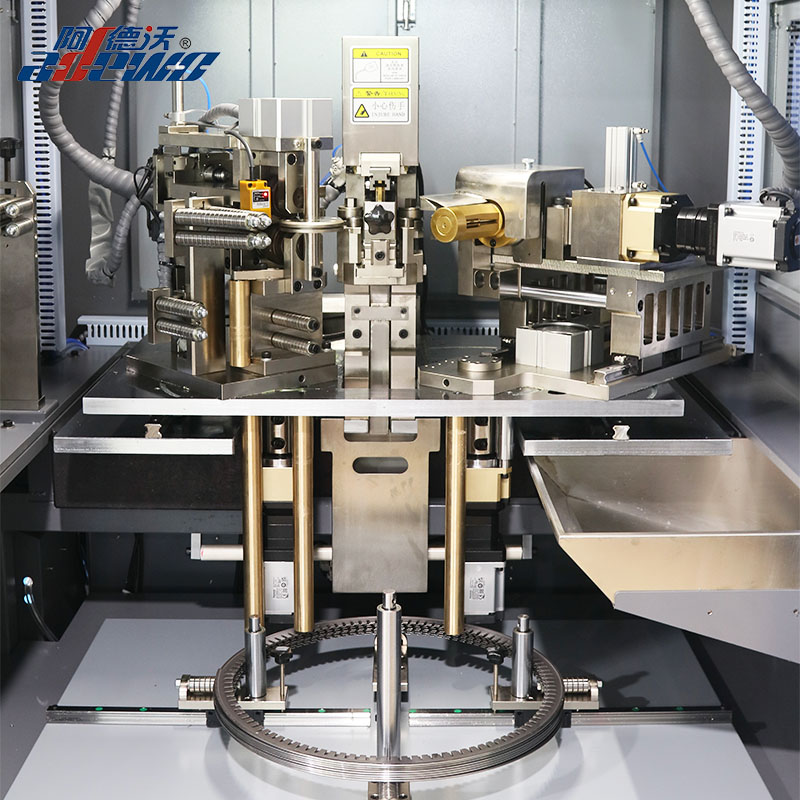

Picture of (ABM-A2580)Rotary Die Formes Auto Bender Machine

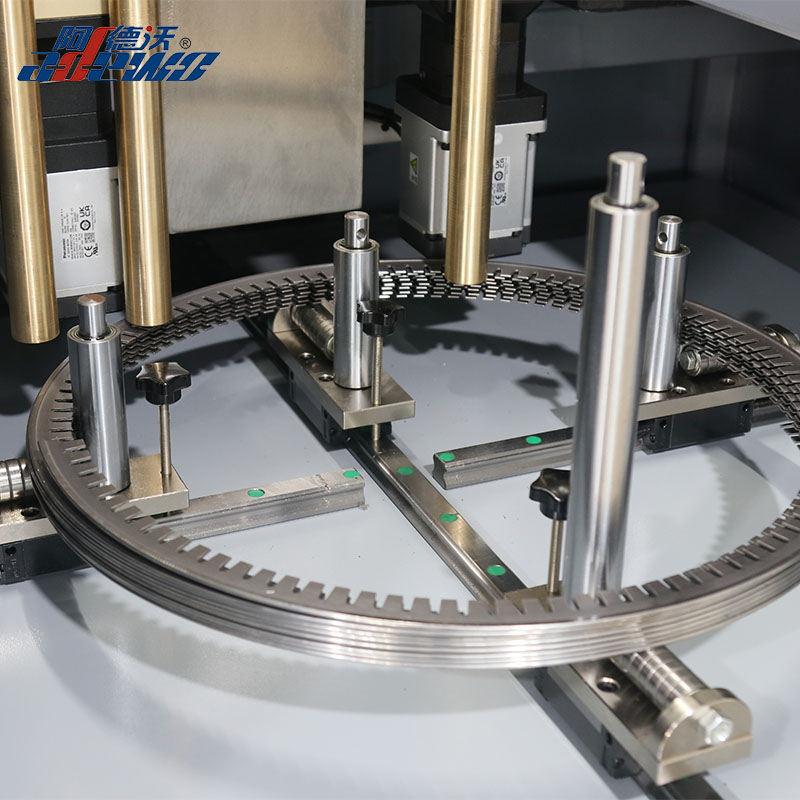

1.Supported curved rule in diameter 220-800mm.
2.For different diameter, it switch automatically by software control, fast switching speed.
3.Supported Curved rule, straight rule, cutting rule, creasing ruleand 4pt/8pt laser crease.

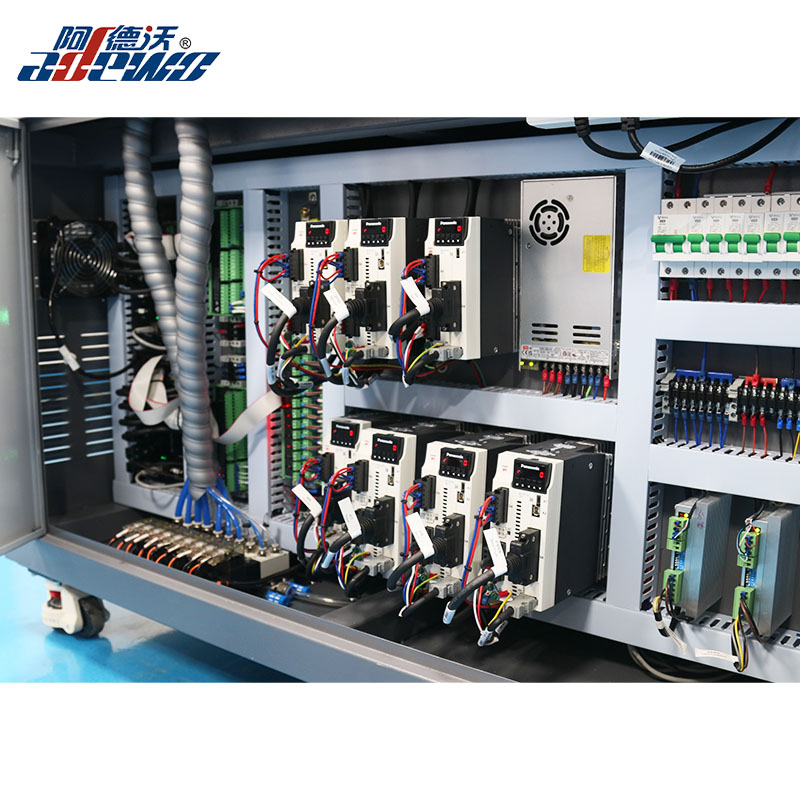

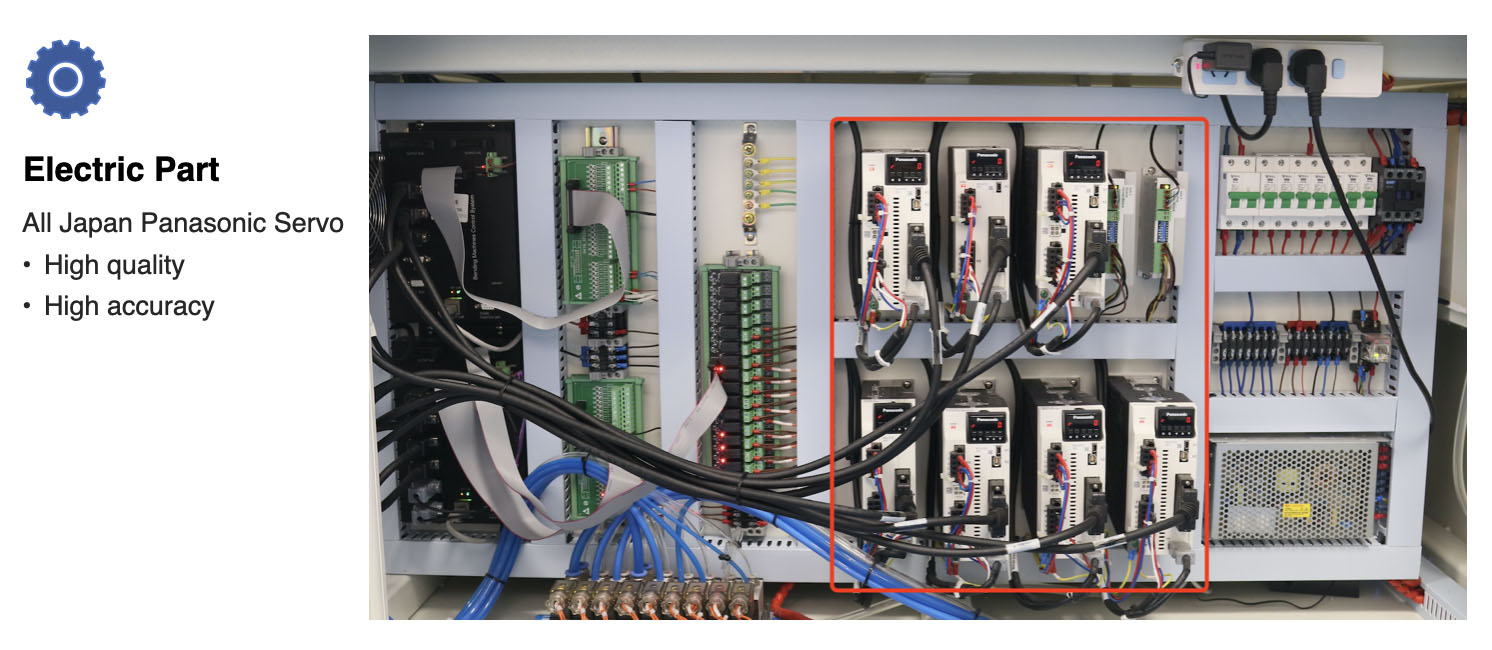

4.All controlled by servo motor, more efficiency and accuracy.

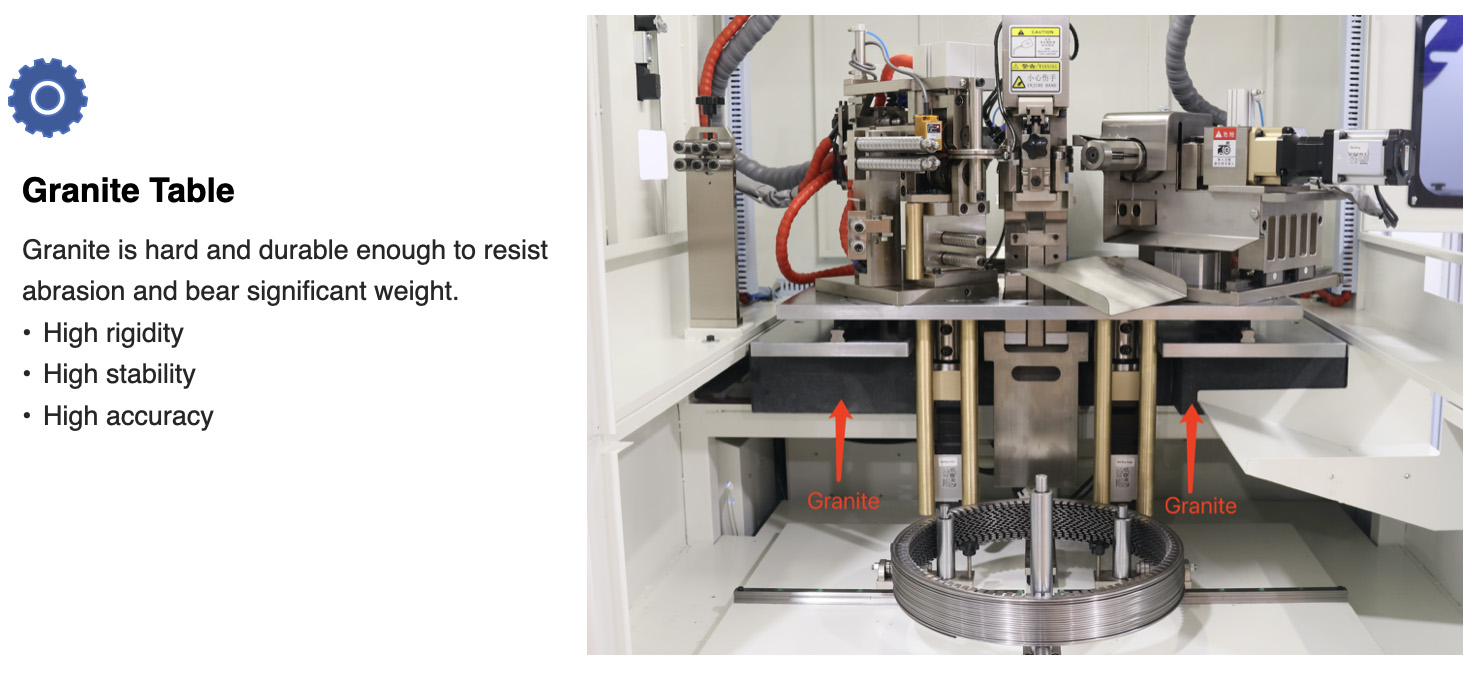

5.Granite table, high rigidity and good stability of marble table.ensure the processing accuracy of the dies.
|
Supported Rule Diameter |
220-800mm |
|
Supported Rule Thickness |
1.42mm (4PT) |
|
Supported Rule Height |
22-30mm |
|

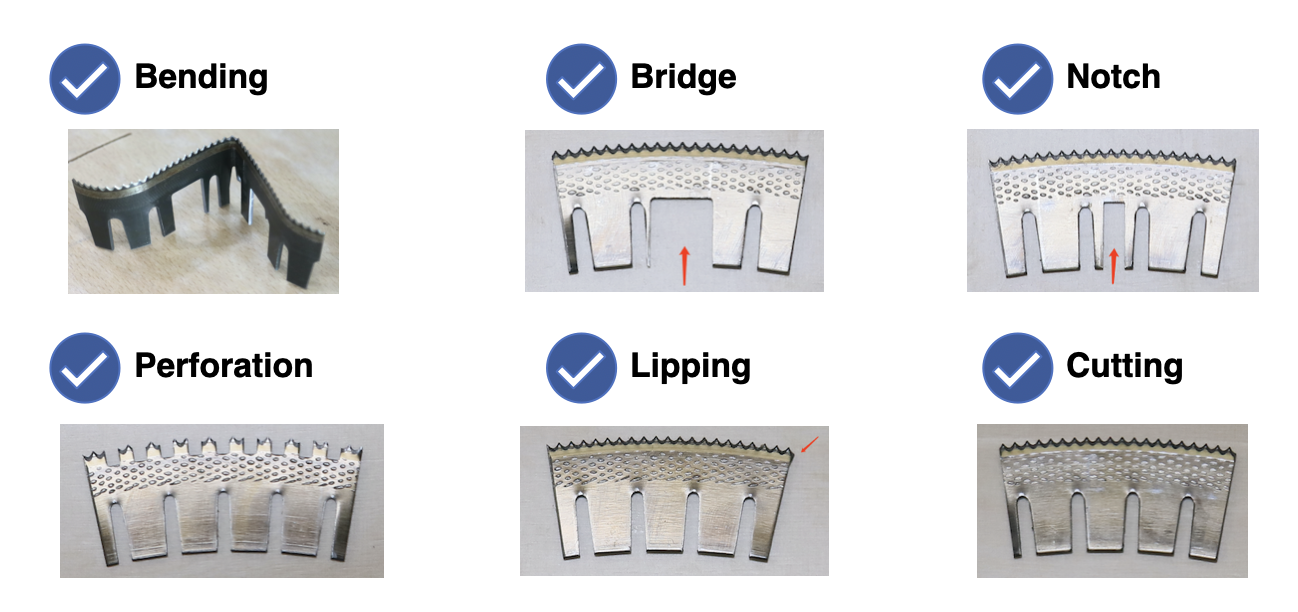

Multi-Functions |
Bending, Bridge, Notch, Cutting, Perfoation, Lipping, Both side Bridge |
|
Optimal Graphic Format |
DXF, DWG, CF2 |
|
Air supply |
1CFM at 6 Bars |
|
Power Supply |
Single Phase,AC220V,20A,50-60Hz |
|
Machine Total Power |
3KW |
|
Machine Weight |
850KG |
|

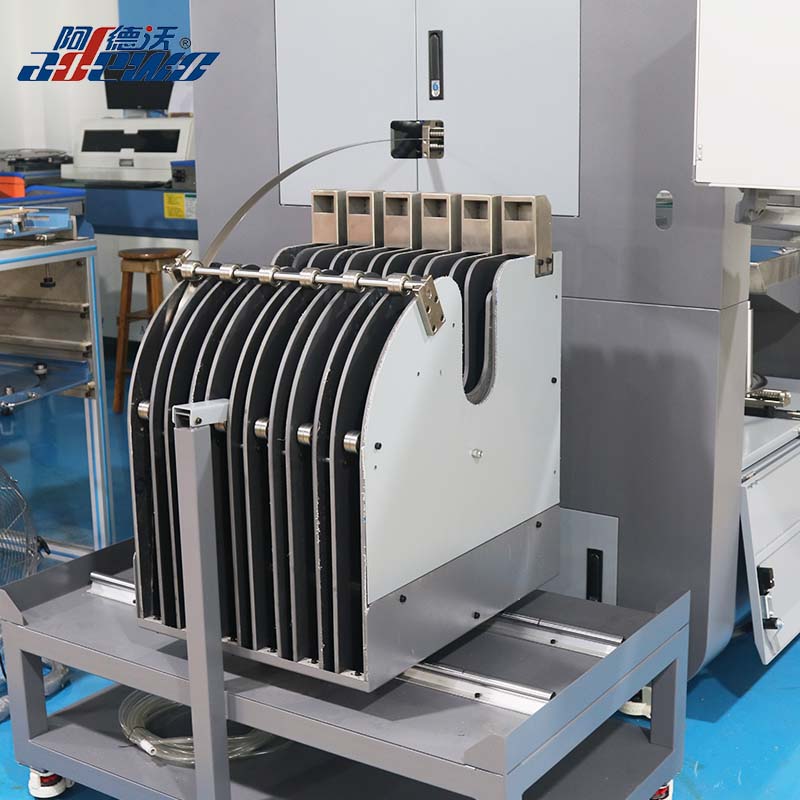

Rule Cassette Weight |
226KG |
|
Machine size |
1350×1310×1750mm(L×W×H) |
|
H.S. Code |
8462230000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time of Rotary Die Formes Auto Bender Machine?
10-15 working days.

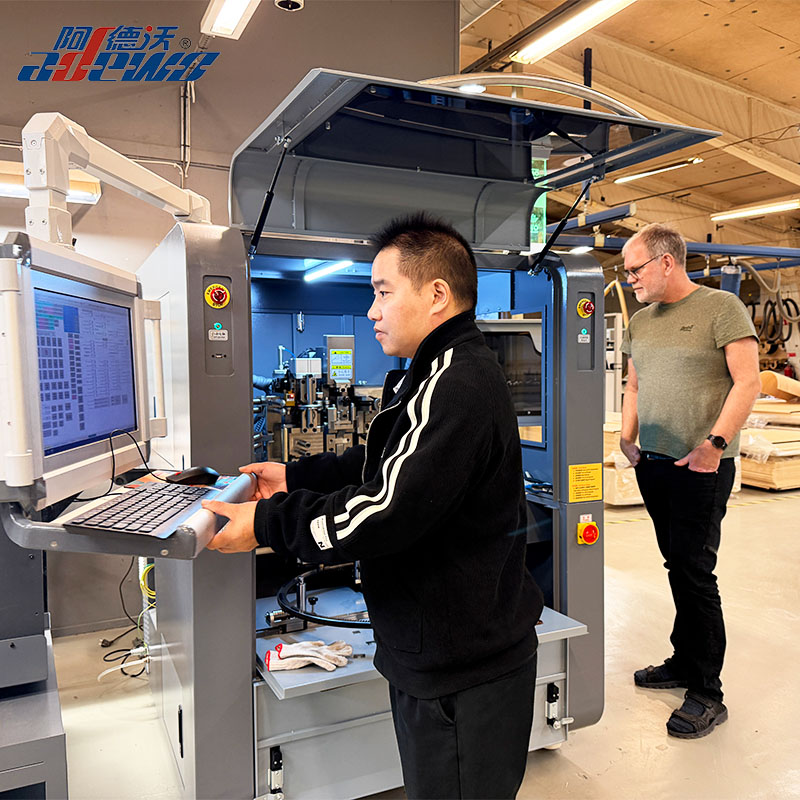

4.How about installation and training of Rotary Die Formes Auto Bender Machinee?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
5.Any spare tools are included of Rotary Die Formes Auto Bender Machine?
Yes,the new order machine with free spare tools.
