              カッピングダイの折り目の自動ルール切断機
              • カッピングダイの折り目の自動ルール切断機カッピングダイの折り目の自動ルール切断機
              • カッピングダイの折り目の自動ルール切断機カッピングダイの折り目の自動ルール切断機
              • カッピングダイの折り目の自動ルール切断機カッピングダイの折り目の自動ルール切断機
              • カッピングダイの折り目の自動ルール切断機カッピングダイの折り目の自動ルール切断機

              カッピングダイの折り目の自動ルール切断機

              専門的な製造として、私たちはあなたにカッティングダイの折り目の自動ルール切断機を提供したいと思います。そして、私たちはあなたに最高のアフターセールサービスとタイムリーな配達を提供します。あなたは私たちの工場に来て、最新の販売、低価格、高品質のカッティングダイの折り目を購入することを歓迎します。私たちはあなたと協力することを楽しみにしています。
              モデル:ABM-A800B

              お問い合わせを送信

              製品説明

              Cutting Die Creasing Auto Rule Cutting Machine

              You can rest assured to buy customized Cutting Die Creasing Auto Rule Cutting Machine from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

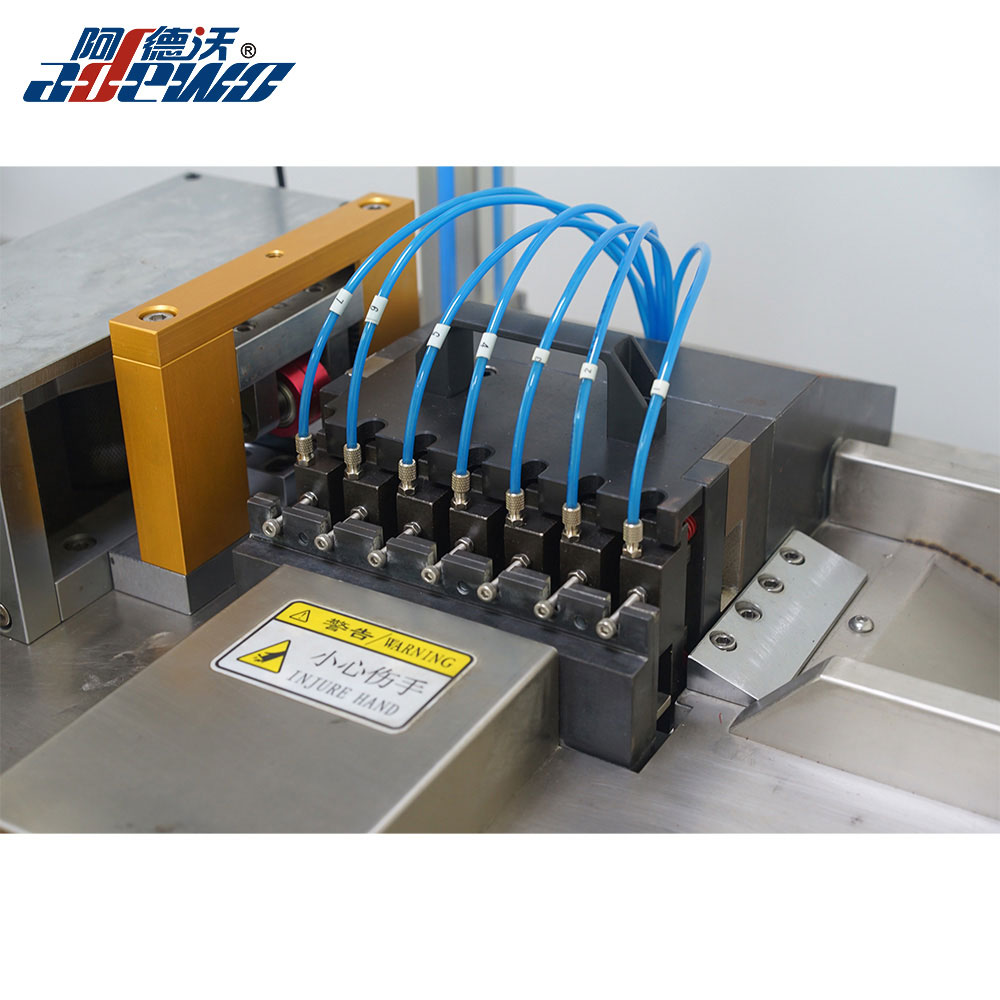

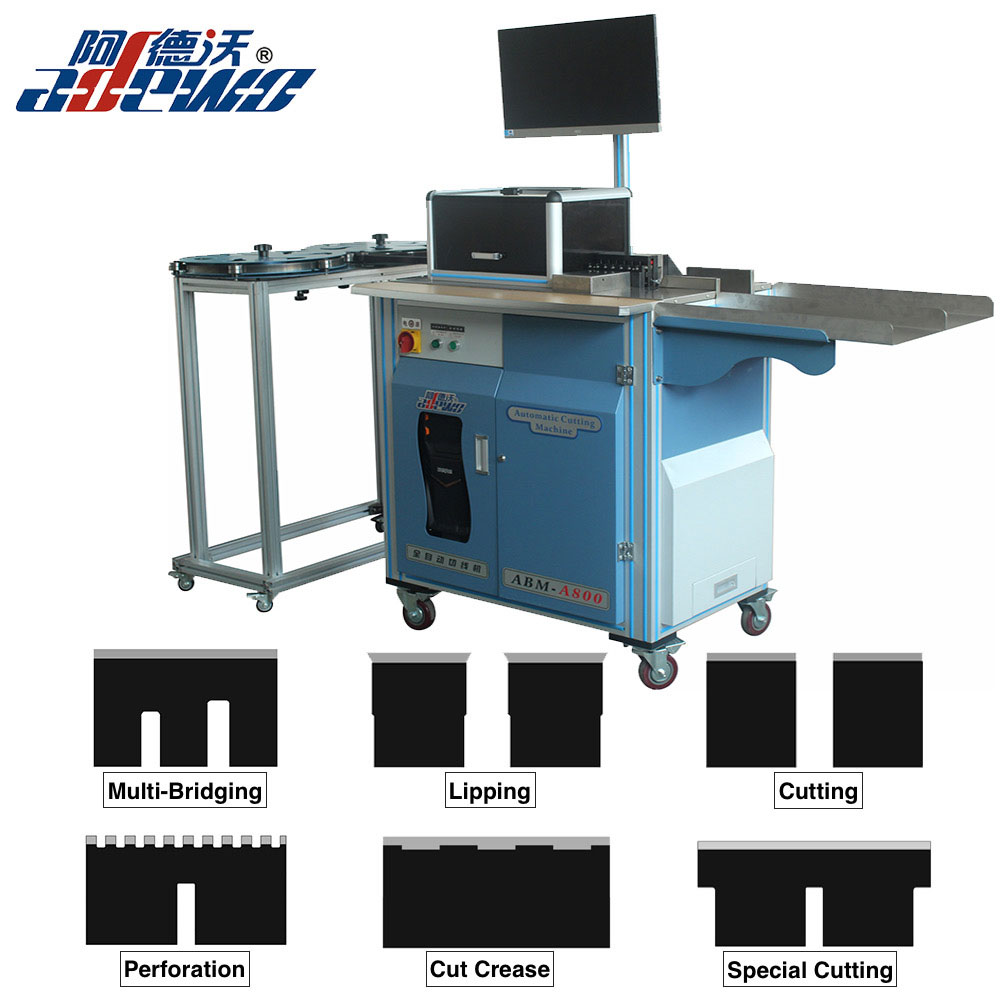

              Picture of (ABM-A800B)Cutting Die Creasing Auto Rule Cutting Machine for reference:



              1.Product Features:

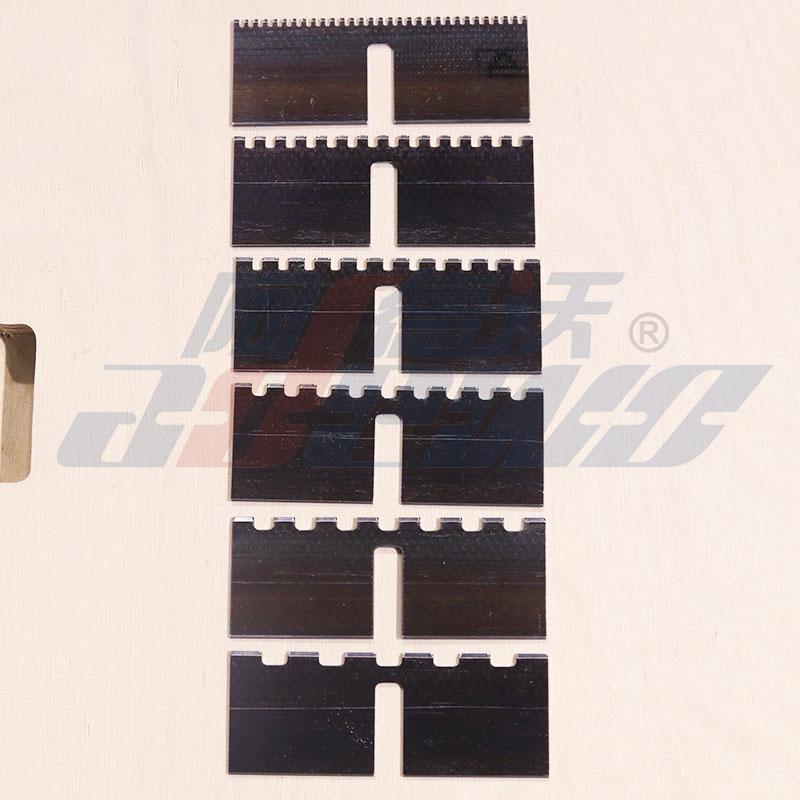

              1.Multi-Functions:(ABM-A800B)Cutting Die Creasing Auto Rule Cutting Machine included Bridge,Perforation,Cut Crease,Lipping,Cutting,Both side Bridge.


              2.This Cutting Die Creasing Auto Rule Cutting Machine supported 2pt,3pt,4pt cutting rule and creasing rule,easy to change different steel rules.


              3.The length of creasing rule/cutting rule can be identify quickly by the smart software, finish auto bridge and auto cutting in few minutes.


              4.The different size of Bridge,Perforation,Cut Crease can be customized to meet different requirements of die boards.


              5.Lipping Tool,Perforation tool,Cut Crease tool are customize based on the cutting rule bevel degree, to get high precision size.

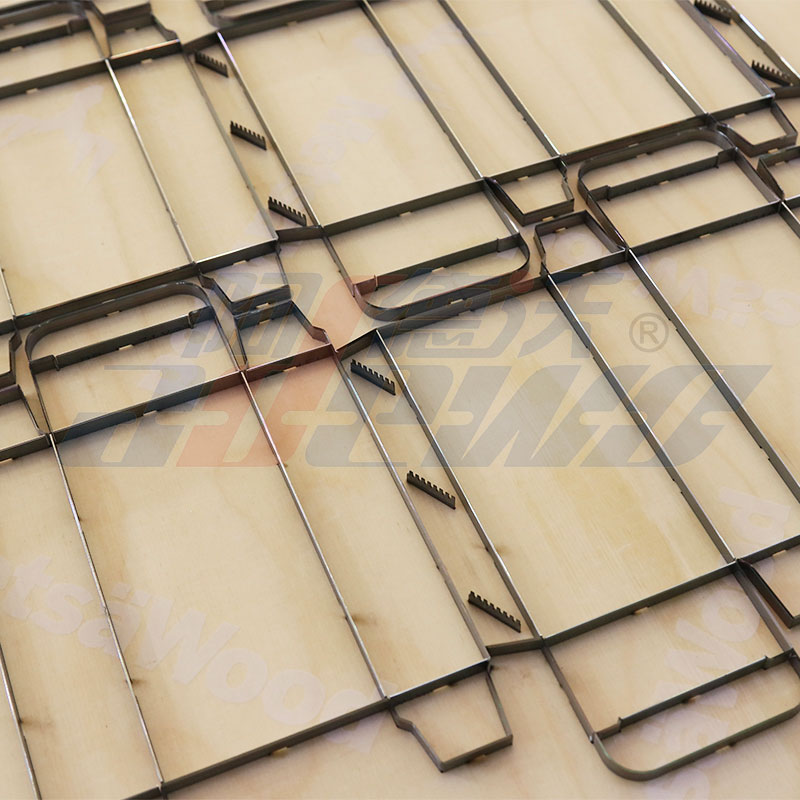

              6.This Cutting Die Creasing Auto Rule Cutting Machine is widely used in die making of carton box, paper box, cardboard, paper bag,corrugated and etc.


              2.Technical Parameters of Cutting Die Creasing Auto Rule Cutting Machine

              Supported Rule thickness

              0.71,1.05,1.42mm (2pt,3pt,4pt)

              Supported Rule height(mm)

              22-26mm

              Basic Functions

              Bridge,Perforation,Lipping,Cutting,Both side Bridge

              Optional Functions

              Cut Crease

              Air supply

              0.4-0.8mpa

              Power supply

              220V,2KW

              Weight

              270KGS

              Overall dimension

              2300x1050x1400(L×W×H)

              H.S. Code

              8461500090


              3.FAQ:

              1.What’s price term?
              (1)FOB Shenzhen China
              (2)CIF
              (3)DDP

              2. What’s payment term?
              30% T/T as down payment, 70% T/T before delivery.

              3.What about lead time of Cutting Die Creasing Auto Rule Cutting Machine?
              7-10 working days.

              4.How about installation and training of Cutting Die Creasing Auto Rule Cutting Machine?
              English software, installation, related training user manual and videos are available for end-users.


              We provide remote support to customers all over the world.

              Our technical service is always available at services@china-adewo.com


              5.Any spare tools are included of Cutting Die Creasing Auto Rule Cutting Machine?
              Yes,the new order machine with free spare tools.
