プロフェッショナルな製造として、折り目のデモ折り目の切断機をカットすることをお勧めします。そして、私たちはあなたに最高のアフターセールサービスとタイムリーな配達を提供します。あなたは私たちの工場に来て、最新の販売、低価格、高品質のカット折り目のデモ折り目を購入することを歓迎します。私たちはあなたと協力することを楽しみにしています。
You are welcomed to come to our factory to buy the latest selling, Versatile Tooling, Industry-Focused Customization and Rapid Production Cut Crease Demo Creasing Cutting Machine. Optimize your die-board production with precision engineering.

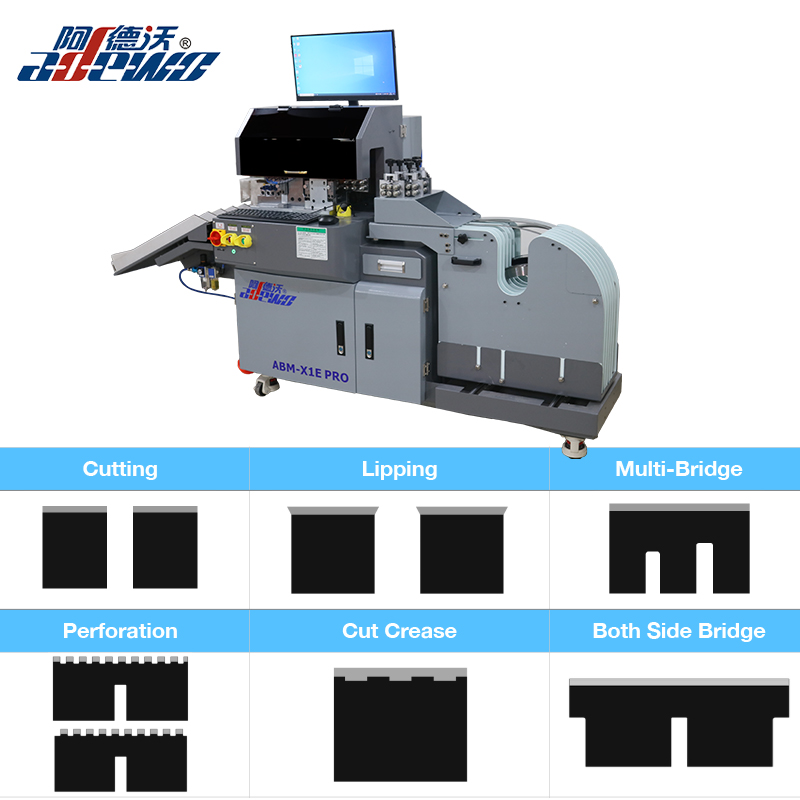

Picture of (ABM-X1E PRO)Cut Crease Demo Creasing Cutting Machine for reference:
1.(ABM-X1E PRO)Cut Crease Demo Creasing Cutting Machine included functions:Cutting , Bridge, Lipping, Perforation.
Optional functions:Perforation,Cut Crease
2.This Cut Crease Demo Creasing Cutting Machine supported 2pt,3pt,4pt cutting rule, creasing rule and stripping rule,supported height 22-60mm, easy to change different steel rules.
3.The length of creasing rule/cutting rule can be identify quickly by the smart software, finish auto bridge and auto cutting in few minutes.
4.The different size of Bridge,Perforation,Cut Crease can be customized to meet different requirements of die boards.
5.Lipping Tool,Perforation tool,Cut Crease tool are customize based on the cutting rule bevel degree, to get high precision size.
6.This Flat Die Making Auto Cutting Machine is widely used in die making of carton box, paper box, cardboard, paper bag,corrugated and etc.
|
Supported rule thickness(mm) |
0.71/1.05/1.42mm (2/3/4pt) |
|
Supported rule height(mm) |
22-60mm |
|
Three Tools Functions |
Bridge,Lipping,Cutting,Both side Bridge |
|
Four Tools Functions |
Bridge,Lipping,Cutting,Perforation, Both side Bridge |
|
Optional Functions |
Cut Crease, Conner Cut, 4pt/8pt Creasing Rule, Stripping Rule |
|
Optimal Graphic Format |
DXF,DWG |
|
Air supply |
0.4-0.8MPa |
|
Power supply |
AC220V, 50-60Hz |
|
Total Power |
2KW |
|
Weight |
240KG |
|
Overall dimension |
1750×760×1250mm(L×W×H) |
|
H.S. Code |
8461500090 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time of Cut Crease Demo Creasing Cutting Machine?
7-10 working days.
4.How about installation and training of Cut Crease Demo Creasing Cutting Machine?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
5.Any spare tools are included of Cut Crease Demo Creasing Cutting Machine?
Yes, the new order machine with free spare tools.
